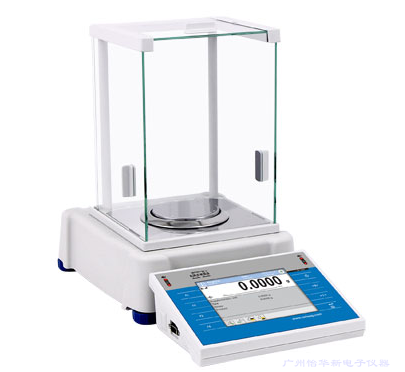

欧洲瑞德威电子天平0.01/0.1mg的特点
|
|||||||||||||||||||||||||||||||||||
AS 3Y series of analytical balances feature the new electronics and modern technological innovations.
Measurement reliability and accuracy are maintained by automatic internal adjustment/ calibration system triggered by time flow or temperature conditions.
AS 3Y series is operated by an electronic module featuring a touch panel covering a 5.7” colour graphic display. 3Y series has implemented new software ensuring easy and simple operation.
■ Electronic level indicator , graphical indication of the level, programmable acceptable tilts, ALARM functions
■ Proximity sensors, programmable hands-free operation ( PRINT and TARA function, opening weighing chamber)
■ New software: intuitive, easy and user-friendly menu
■ Measurement reliability and accuracy is assured by internal calibration triggered by time flow or temperature conditions
■ Possibility of detaching indicator from the weighing chamber
■ Communication interfaces: USB (2x), RS232, Ethernet, additional display port
|
|||||||||||||||||||||||||||||||||||
规格参数
|
型 号
|
XA52.3Y
|
XA110.3Y
|
XA210.3Y
|
XA82/220.3Y
|
XA160.3Y
|
XA220.3Y
|
XA310.3Y
|
XA510.3Y
|
|
最大秤量
|
52 g
|
110 g
|
210 g
|
82/220 g
|
160 g
|
220 g
|
310 g
|
510 g
|
|
可读性
|
0.01mg
|
0.01mg
|
0.01mg
|
0.01/0.1mg
|
0.1mg
|
0.1mg
|
0.1mg
|
0.1mg
|
|
重复性
|
0.01mg
|
0.02mg
|
0.02mg
|
0.02/0.08mg
|
0.08mg
|
0.08mg
|
0.08mg
|
0.08mg
|
|
线性
|
0.03mg
|
0.07mg
|
0.07mg
|
0.06/0.2mg
|
0.2mg
|
0.2mg
|
0.3mg
|
0.3mg
|
|
秤盘尺寸
|
￠85 mm
|
￠100 mm
|
||||||
|
Minimum weight (acc.to USP)
|
60 mg
|
240 mg
|
||||||
|
Minimum weight (U=1%, k = 2)
|
4 mg
|
16 mg
|
||||||
|
稳定时间
|
5 s
|
3 s
|
||||||
|
Sensitivity offset
|
2×10-6×Rt-6
|
|||||||
|
Sensitivity temperature drift
|
1×10-6/°C×Rt
|
|||||||
|
Sensitivity stability
|
1×10-6/Year×Rt
|
|||||||
|
Sensitivity drift
|
1ppm/°C in temperature +15 ° ～ +35 °C
|
|||||||
|
Atmospheric humidity*
|
40 - 80%
|
|||||||
|
称重室尺寸
|
170×200×220 mm
|
|||||||
|
校准方式
|
全自动内校（时间、温度触发）
|
|||||||
|
显示器
|
5.7”彩色智能触摸屏
|
|||||||
|
接口
|
2个USB接口，RS232，以太网，4输入/4输出
|
|||||||
